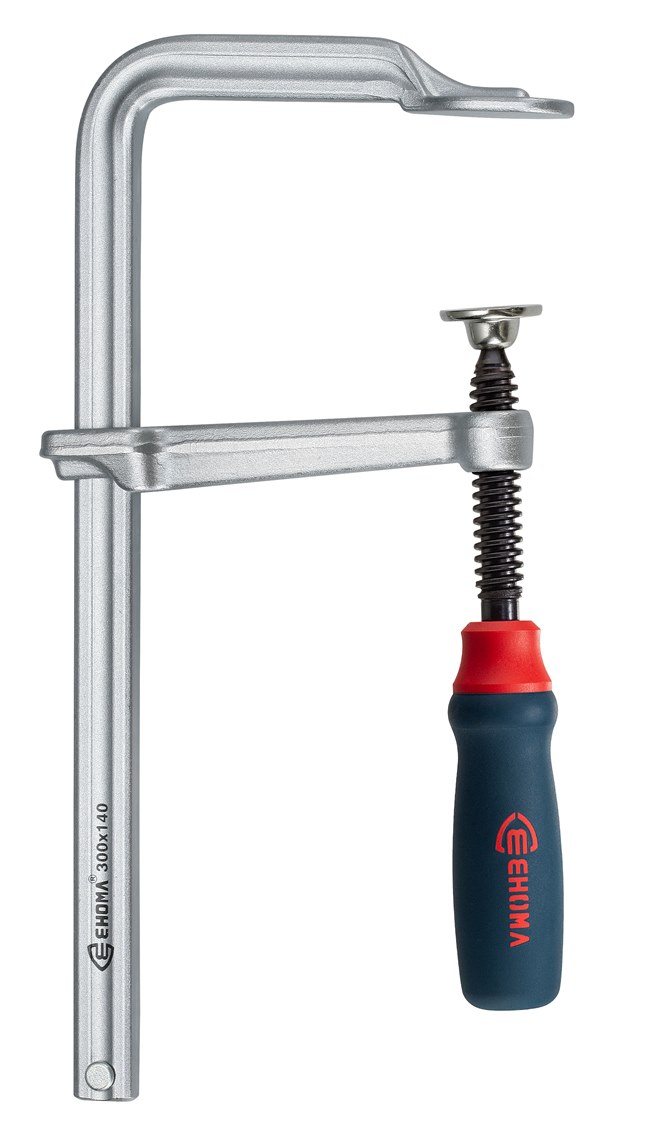

General Purpose Clamp Component Handle Item No. : Standard Series

Favorite Inquiry PREV NEXT

,

Product Feature

The component plastic handle is made of P.P. and T.P.V. material. The PN handle can be with logo or without logo. It could be ordered by OEM branding request. The clamping pressure is measured at the span of 150mm. Extra P.P. pads can be ordered together with the clamp or separately as accessories.

Product Specification

Item NO.	Span x Depth mm	Rail mm	Weight kg	Pressure kg	Pack pcs
G10PN	100 X 50	11.5 X 5.7	0.18	220	10
G20PN5	200 X 50		0.22
G30PN5	300 X 50		0.27
G12PN	120 X 60	13.5 X 6.5	0.30	270	10
G20PN6	200 X 60		0.35
G30PN6	300 X 60		0.41
G16PN	160 X 80	16.0 X 7.5	0.50	300	10
G20PN8	200 X 80		0.54
G30PN8	300 X 80		0.63
G40PN8	400 X 80		0.70
G20PN	200 X 100	19.5 X 9.5	0.88	450	10
G30PN10	300 X 100		1.00
G50PN10	500 X 100		1.26
G25PN	250 X 120	22.0 X 10.5	1.23	550	10
G30PN12	300 X 120		1.31
G40PN12	400 X 120		1.47
G50PN12	500 X 120		1.63
G60PN12	600 X 120		1.79
G80PN12	800 X 120		2.13		6
G100PN12	1000 X120		2.57
G30PN	300 X 140	25.0 X 12.0	1.85	670	10
SG30PN	300 X 120	25.0 X 12.0	1.78	750	10
SG40PN	400 X 120		1.97
SG50PN	500 X 120		2.18
SG60PN	600 X 120		2.39
SG80PN	800 X 120	27.0 X 13.0	3.27	1000	6
SG100PN	1000 X 120		3.75
SG125PN	1250 X 120		4.35		4
SG150PN	1500 X 120		4.98
