2-Way Ratchet Clamp

  • 2-Way Ratchet Clamp Item No. : Deep Series
    Description Features
    The plastic handle is made of TPR material.
    The clamping pressure is measured at the span of 150mm.
    Extra P.P. pads can be ordered together with the clamp or separately as accessories (Page 55).


     Parts

     The Human factors engineering
    design can force fast, easily, and
    make the most of the clamp
    performance. It improves working
    efficiency, increases working quality
    and keep working in limited space.



    Product Description
    Outstanding Performance
    Innovative use of patented 2-way ratchet structure +
    horizontal and comfortable handle.
    (A)2-Way Ratchet Structure
    It can be repeated urging quickly to single direction. Fast
    clamping the workpiece is good for increasing work efficiency.
    (B)Horizontal And Comfortable Handle
    The handle with a longer torque can achieve the high clamping
    pressure easily, make the most of the clamp performance, and
    increase working quality.

    No Limited to Working
    Environment or Workspace.
    A traditional wood handle/T-handle clamp may be
    limited by the different workspace due to the handle
    structure. The 2-Way ratchet clamp can prevent such
    operation problem totally. It is much easy, fast and
    convenient to operate.

    Human Factors Engineering Design
    In addition, to make sure the clamping performance,
    EHOMA is committed to providing the users a better
    operating experience.
    (A)In any environment or workspace, the user can operate the
    clamp by the best and most suitable way for forcing and
    clamping.
    (B)In some workspace, you cannot operate by your handedness.
    2-way ratchet clamp still provides you the best operating
    experience in such situation.

    Replace The Specific Clamp
    From now, you don’t need to buy a specific function
    clamp for a rare purpose. It can fit most of your
    situation and decrease your tool cost.

    Product Specification
    Item NO.

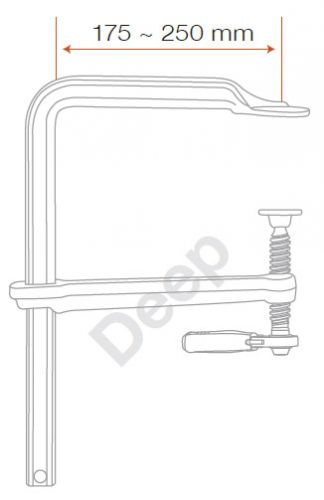

    Span x Depth
    mm
    Rail
    mm
    Weight
    kg
    Pressure
    kg
    Pack
    pcs
    G40R
    400 X 175
    27.0 x 13.0
    2.71
    700
    10
    G60R
    600 X 175
    3.20
    6
    G80R
    800 X 175
    3.69
    G100R
    1000 X 175
    4.17
    SD30T20R
    300 X 200
    30.0 x 15.0
    3.08
    800
    6
    SD40T20R
    400 X 200
    3.39
    SD50T20R
    500 X 200
    3.66
    SD60T20R
    600 X 200
    3.99
    SD80T20R
    800 X 200
    4.91
    4
    SD100T20R 1000 X 200 5.23
    SD40T25R
    400 X 250
    30.0 x 15.0
    3.66
    700
    6
    SD50T25R
    500 X 250
    4.21
    SD60T25R
    600 X250
    4.51
    SD80T25R
    800 X250
    5.11
    4
    SD100T25R
    1000 X 250
    5.81
