Strong-Hold Multiple Pad S-C / GS

    • Strong-Hold Multiple Pad S-C / GS Item No. : S-C Series
    Description
    » Three replaceable clamping pads are available and can be quickly replaced.

    » Hexagon design of the screws' end is good for reinforced clamping.

    » The clamping pressure is measured at the span of 150mm.
    Favorite Inquiry NEXT
    Product Feature
    Product Specification
    Item NO.

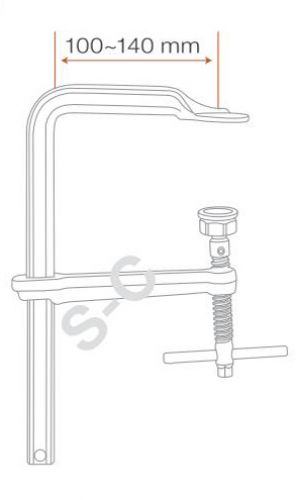

    Span x Depth
    mm
    Rail
    mm
    Weight
    kg
    Pressure
    kg
    Pack
    pcs
    S20C 180 X 100
    19.5 X 9.5
    		 1.00
    450
    		 10
    S25C 230 X 120 22.0 X 10.5 1.30 550
    S30C 280 X 140 25.0 X 12.0 1.97 670
    S40C 380 X 120 25.0 X 12.0 2.08 750
    S50C 480 X 120 2.30
    S60C 580 X 120 2.50
    S20C12
    200 X 120
    		 27.0 X 13.0
    1.97
    		 1000
    S25C12
    250 X 120
    2.09
    S30C12
    300 X 120
    2.21
    S40C12
    400 X 120
    2.46
    S50C12
    500 X 120
    2.71
    S60C12
    600 X 120
    2.96
    		 6
