2-Way Ratchet Clamp

  • 2-Way Ratchet Clamp Item No. : S-R Series
    Description  Features
    Easy replacement step.

    The standard accessory
    is P-Pad.
    The V-Pad and R-Pad
    are optional.


     The Human factors engineering
    design can force fast, easily, and
    make the most of the clamp
    performance. It improves working
    efficiency, increases working quality
    and keep working in limited space.



    Product Description
    Outstanding Performance
    Innovative use of patented 2-way ratchet structure +
    horizontal and comfortable handle.
    (A)2-Way Ratchet Structure
    It can be repeated urging quickly to single direction. Fast
    clamping the workpiece is good for increasing work efficiency.
    (B)Horizontal And Comfortable Handle
    The handle with a longer torque can achieve the high clamping
    pressure easily, make the most of the clamp performance, and
    increase working quality.

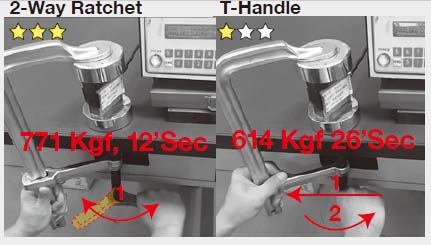

    No Limited to Working
    Environment or Workspace.
    A traditional wood handle/T-handle clamp may be
    limited by the different workspace due to the handle
    structure. The 2-Way ratchet clamp can prevent such
    operation problem totally. It is much easy, fast and
    convenient to operate.

    Human Factors Engineering Design
    In addition, to make sure the clamping performance,
    EHOMA is committed to providing the users a better
    operating experience.
    (A)In any environment or workspace, the user can operate the
    clamp by the best and most suitable way for forcing and
    clamping.
    (B)In some workspace, you cannot operate by your handedness.
    2-way ratchet clamp still provides you the best operating
    experience in such situation.

    Replace The Specific Clamp
    From now, you don’t need to buy a specific function
    clamp for a rare purpose. It can fit most of your
    situation and decrease your tool cost.

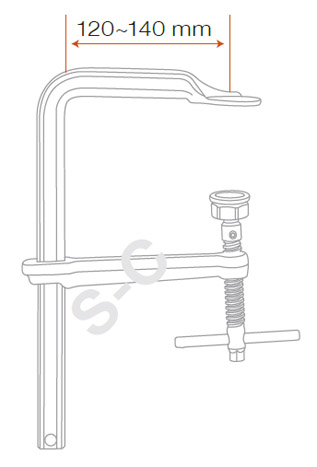

    Product Specification
    Item NO.
    Span x Depth
    mm
    Rail
    mm
    Weight
    kg
    Pressure
    kg
    Pack
    pcs
    S30R
    300 x 140
    25.0 X 12.0
    2.11
    670 10
    S40R
    400 X 120
    2.22
    750
    S50R
    500 X 120
    2.44
    S60R
    600 X 120
    2.64
    S20R12
    200 X 120

    27.0 X 13.0
    2.11
    1000

    10
    S25R12
    250 X 120
    2.23
    S30R12
    300 X 120
    2.35
    S40R12
    400 X 120
    2.60
    S50R12
    500 X 120
    2.85
    S60R12 600 X 120 3.10 6
    GS25R
    250 X 120
    30.0 x 15.0
    2.87
    1200 6
    GS30R 300 X 140
    3.07
    GS40R
    400 X 120
    3.31
    GS50R
    500 X 140
    3.77
    GS60R
    600 X 120
    3.98
    GS80R
    800 X 140
    4.73
    GS100R
    1000 X 120
    5.26
    4
    GS125R 1250 X 120 6.05
    GS150R 1500 X 120 6.76
