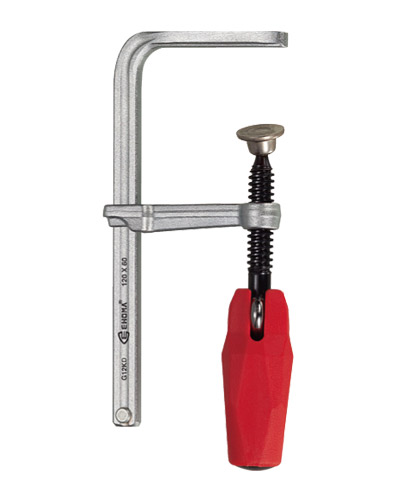

Groove Clamp Diamond Handle

    • Groove Clamp Diamond Handle Item No. : Diamond Handle
    Description Parts

    Soft Pad For Diamond Handle
    Favorite Inquiry PREV NEXT
    Product Description

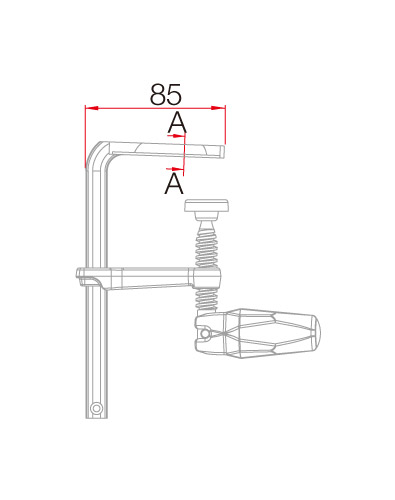

    The Clamp for groove has small and flat head. It can insert or pass through a 12x8mm groove/track.

    Extra p.p.pads can be ordered for protecting the workpiece.
    New optional accessory, P.P. Stopper could be taken
    off and replace it easily.




    Labor-Saving：

    With pivot structure, more easy to apply clamping force.

    Space-Saving :

    After clamping, the bending handle save much more space than traditional straight handle.


    Product Specification
    Item NO.
    		 Span x Depth
    mm    		 Rail
    mm    		 Weight
    kg    		 Pack
    pcs
    G12KD 120x60 13.5x6.5 0.40 20
    G16KD 160x60 0.43
    G20KD 200x60 0.45 10
    G30KD 300x60 0.50
