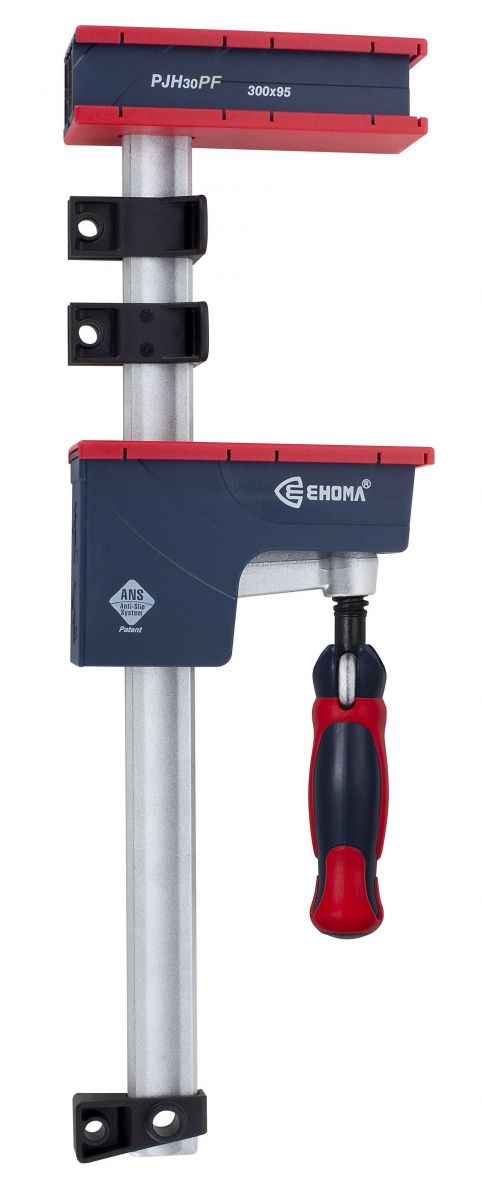

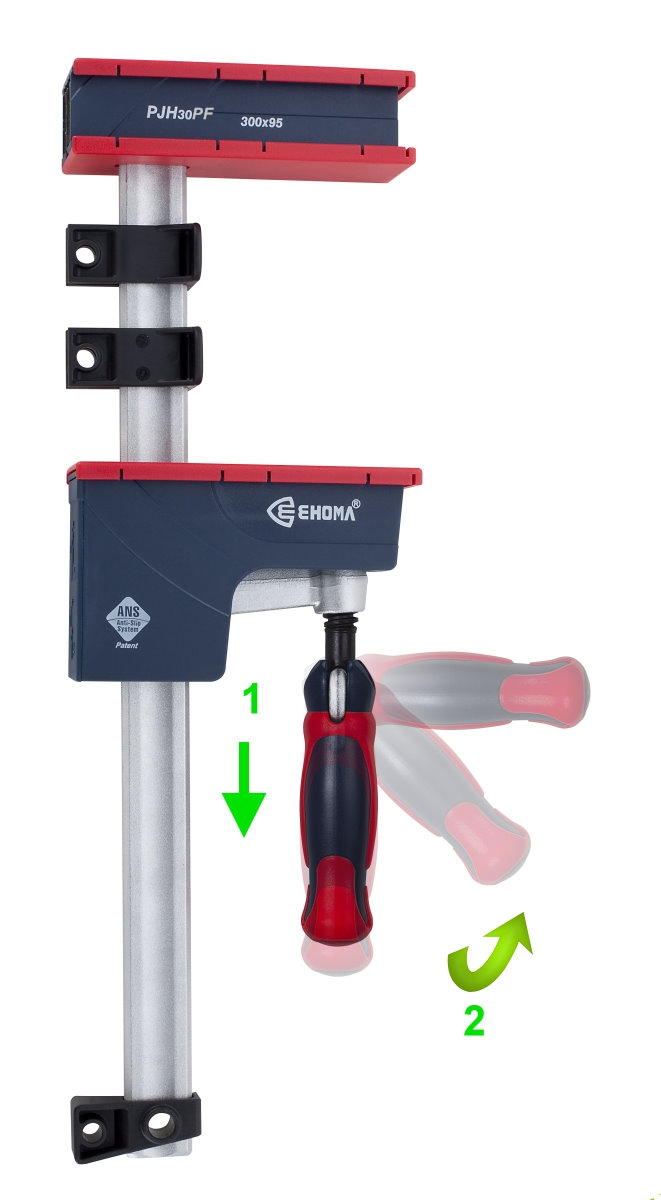

Parallel Jaw Clamp_Heavy-Duty

    • Parallel Jaw Clamp_Heavy-Duty Item No. : Folding Handle Series
    Description
    Benefits of PJH:
    Anti-Slip System :
    Anti-Slip System (ANS system) effectively prevents the clamp from dislodging or slipping away. ANS system can also hold the sliding arm anywhere on the rail.

    Favorite Inquiry NEXT
    Product Feature

    Parallel Jaw:
    Large parallel clamping surfaces
    Forged sliding arm inside (medium carbon steel)

    Rail: High quality profiled steel with Zinc plating

    Pressure Caps:
    Replaceable
    Protect delicate surfaces
    Repellant to glue
    Resistant to paint and grease solvents

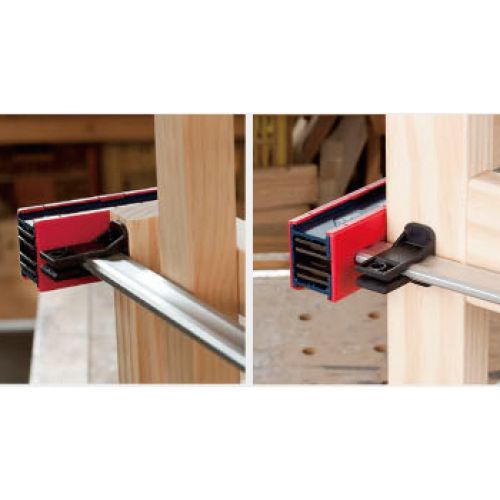

    Workpiece platform:
    Prevents directly contacting by the workpiece on the rail
    Round corner design prevents from damaging the workpiece

    Stopper: Can be taken off and converted the sliding arm to spreading function.

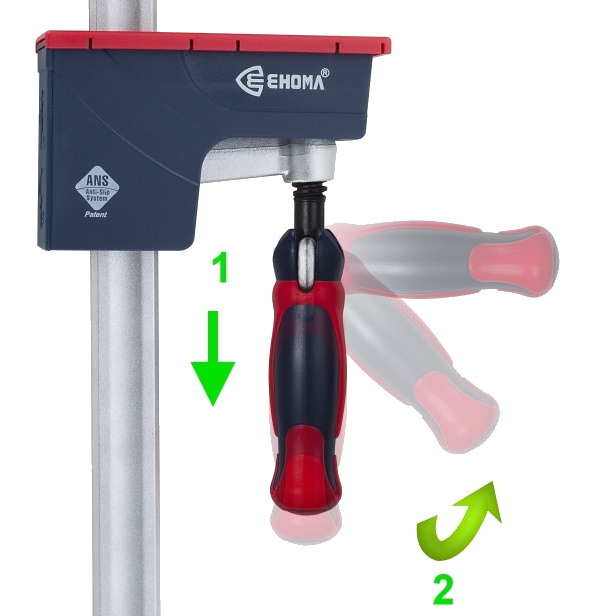

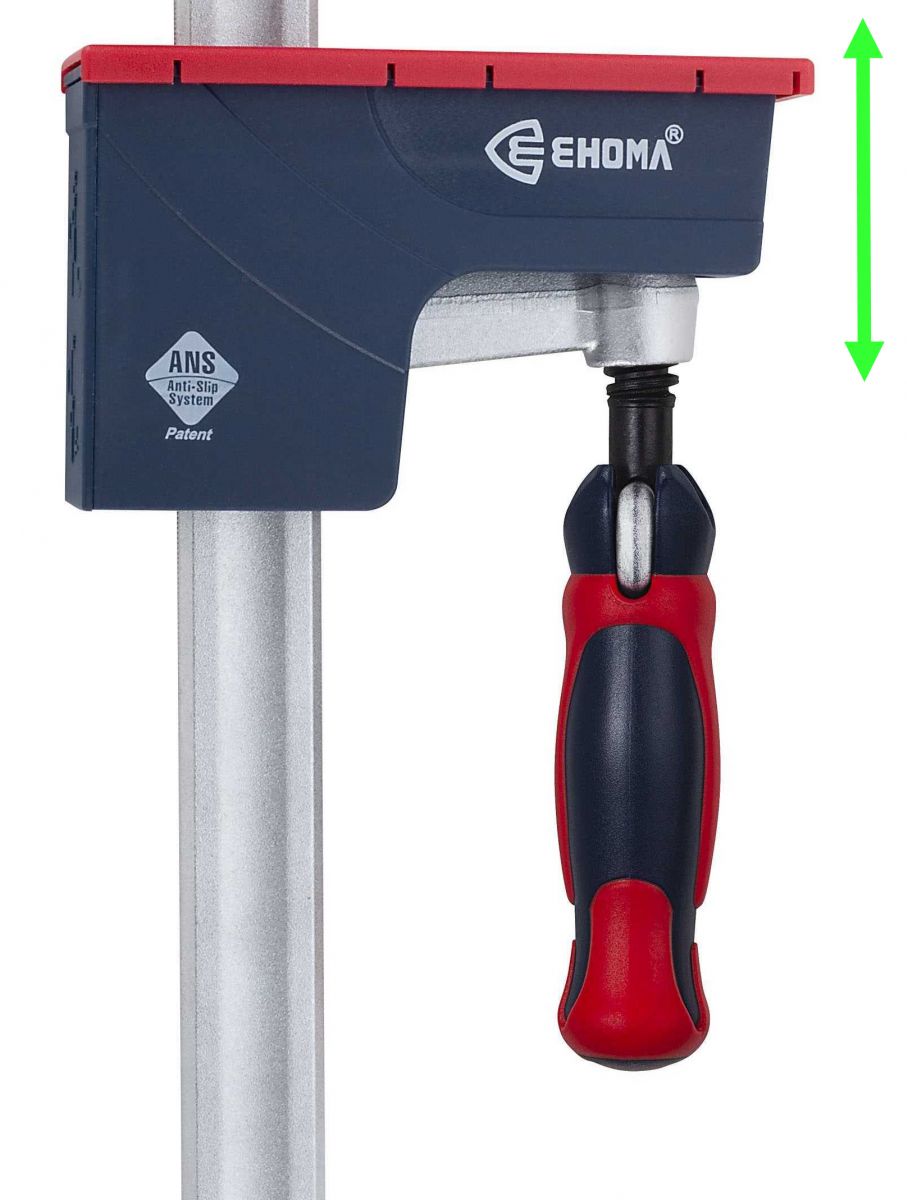

    Ergonomic Handle :
    High quality 2-component plastic handle
    Easy and comfortable to hold
    User friendly design.





    Product Specification

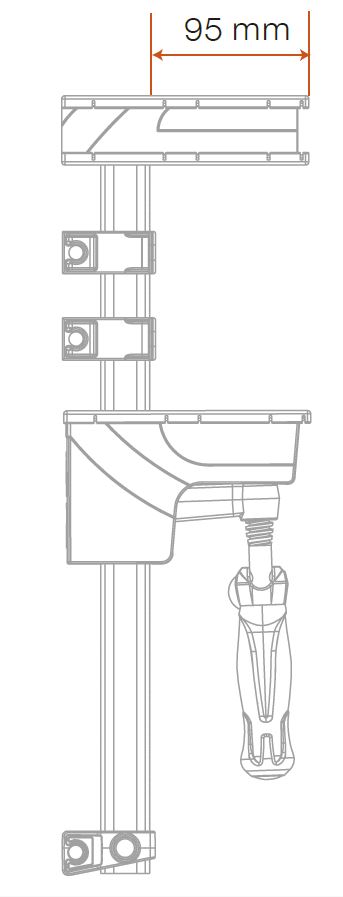

    Item NO. Span x Depth
    mm    		 Spreading
    mm    		 Rail
    mm    		 Weight
    kg    		 Pressure
    kc    		 Pack
    pcs
    PJH30PF 300x95 245~435 29.0 x 9.0 2.21 710 8
    PJH60PF 600x95 245~735 2.91 4
    PJH80PF 800x95 245~935 3.21
    PJH100PF 1000x95 245~1135 3.41
    PJH125PF 1250x95 245~1385 4.01
    PJH150PF 1500x95 245~1635 4.51
    PJH200PF 2000x95 245~2135 5.41
    PJH250PF 2500x95 245~2635 6.31
