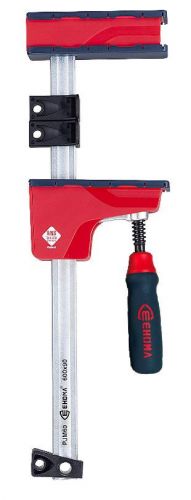

Parallel Jaw Clamp_Medium-Duty

    • Parallel Jaw Clamp_Medium-Duty Item No. : Component Handle Series
    Description
    Benefits of PJM:
    Anti-Slip System :
    Anti-Slip System (ANS system) effectively prevents the clamp from dislodging or slipping away. ANS system can also hold the sliding arm anywhere on the rail.

    Favorite Inquiry PREV NEXT
    Product Feature

    Clamping force: 460kgf

    Parallel Jaw:
    Large parallel clamping surfaces
    Forged sliding arm inside (medium carbon steel)

    Rail: High quality profiled steel with Zinc plating

    Pressure Caps:
    Replaceable
    Protect delicate surfaces
    Repellant to glue
    Resistant to paint and grease solvents

    Workpiece platform:
    Prevents directly contacting by the workpiece on the rail
    Round corner design prevents from damaging the workpiece

    Stopper: Can be taken off and converted the sliding arm to spreading function.

    Ergonomic Handle :
    High quality 2-component plastic handle
    The PN handle can be with logo or without logo.
    Easy and comfortable to hold
    User friendly design.



    Product Specification

    Item NO. Span x Depth
    mm    		 Spreading
    mm    		 Rail
    mm    		 Weight
    kg    		 Pressure
    kc    		 Pack
    pcs
    PJM30PN 300 X 90 215-425 25.0 X 6.0 1.50 460 8
    PJM60PN 600 X 90 520-730 1.85 4
    PJM100PN 1000 X 90 910-1120 2.10
