Locking Arm

Clamps

Locking Arm Item No. : CLA-1

Favorite Inquiry PREV NEXT

Product Description

Product Feature

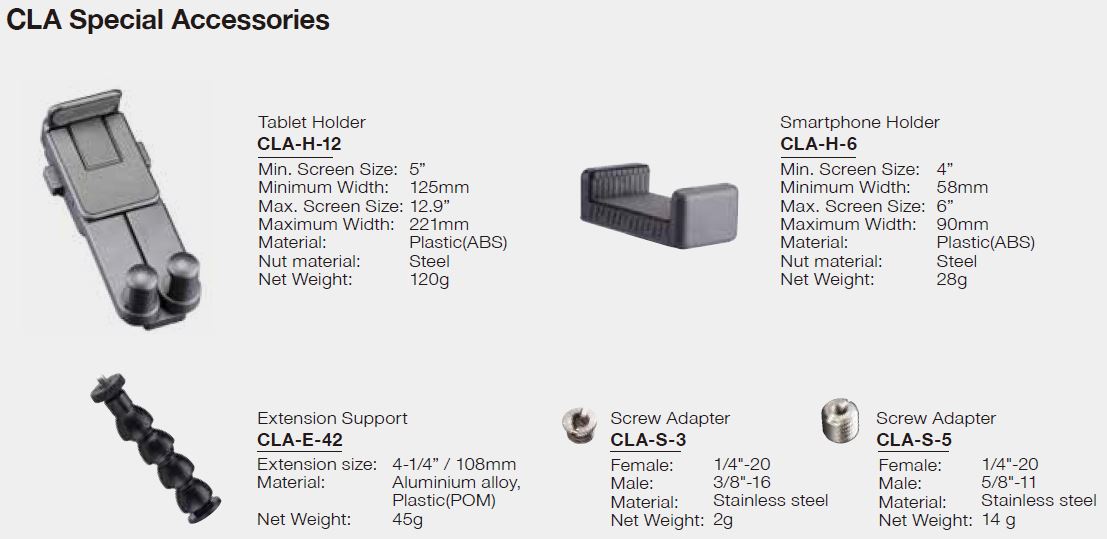

Cantilever C clamp with locking arm can be used for horizontal laser machine, smartphone, tablet, time lapse camera, actioncam, monitoring equipment.... It connects all with the International common size 1/4" screw including the accessories.

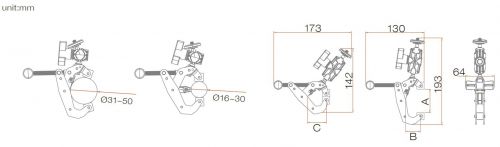

Cantilever Locking Arm could be your best helper when you are working with a tablet. It could be clamped to a rod, bar (diameter 16~50mm) and plate (thickness <50mm). Round object could be clamped by the inner jaw or whole jaw. The inner jaw provides 3-point clamping tightly in the range 16~30mm for a small cylinder conveniently.

Locking arm design could adjust the angle of view to make your working more comfortable and easier.

Product Specification

	Length mm	Width mm	Thickness mm	Span A inch/mm	Depth B mm	Depth C mm	Weight Kg/lbs	Pressure Kg/lbs	Locking Arm Loading Kg/lbs	Mount screw	Pack pcs
Extend	133	90.5	46.5	1.25”/32	14.5	22.4	0.12	200/440	2.7 / 6	1/4"-20	50
Storage	131.4	73.9	46.5	1.25”/32	14.5	22.4	0.12	200/440	2.7 / 6	1/4"-20	50
