Camera Expanding Bracket

Clamps

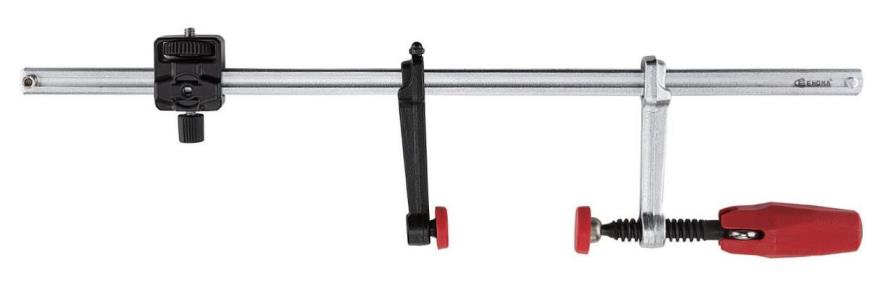

Camera Expanding Bracket Item No. : Sliding Clamp with Platform Adapter

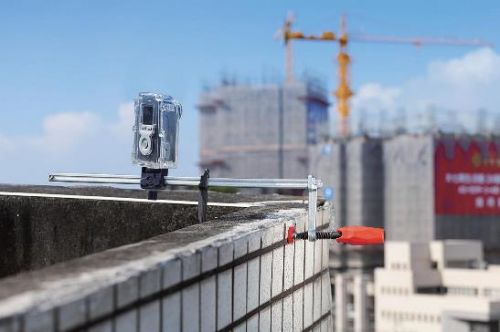

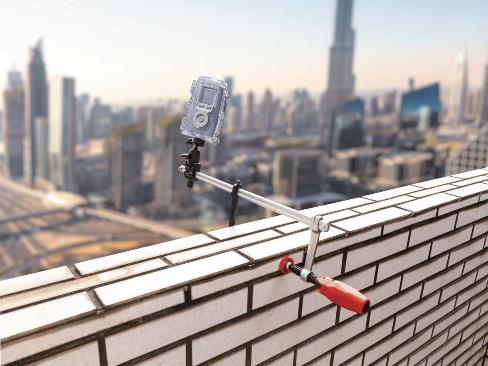

Description Clamping at a wall or a thickness object and providing a platform to fix the camera, time lapse camera, action cam, monitoring equipment..... are in a easy way to do it without extra tools. The clamp could be fixed for months in the certain position even in a rigorous weather or environment and provide a stable record.

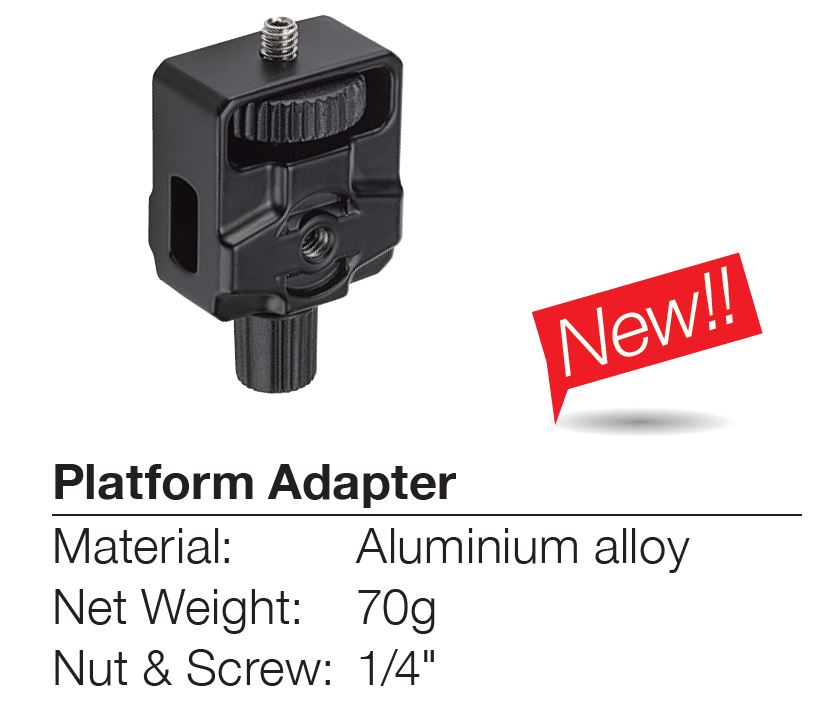

The platform could connect to all International common size 1/4" screw.

Favorite Inquiry PREV

Product Feature

Ergonomically Designed:
Operating a clamp above the workpiece is more ergonomic than under it.

Industrial safety:
Keep the rail out of the working area to prevent injuries.

Diamond Handle:
Labor-Saving： With pivot structure, more easy to apply clamping force
Space-Saving : After clamping, the bending handle save much more space than traditional straight handle.

More Functions:
F clamp which operates from top of the clamp. Spreading clamp for light duty. Double clamping function clamp on one rail.

ANS System
(Anti-Slip System, Patented): ANS system can hold the sliding arm anywhere on the rail. Prevent sliding arm from slipping away when clamping, even if shaking the clamp.

Soft Pad Attached:
Protecting the workpiece. Material: P.P.

The Stopper: Hex Socket Screws (m5)

Product Specification

Item NO.	SpanxDepth mm	Spreading mm	Rail mm	Weight kg	Pressure kg	Pack pcs
CEB20-8	200 x 80	145-300	16.0 x 7.5	0.72	320	10
CEB30-8	300 x 80	145-400		0.81
CEB40-8	400 x 80	145-500		0.89
