General Purpose Clamp Wood Handle Item No. : Deep Series

Favorite Inquiry PREV NEXT

,

Product Feature

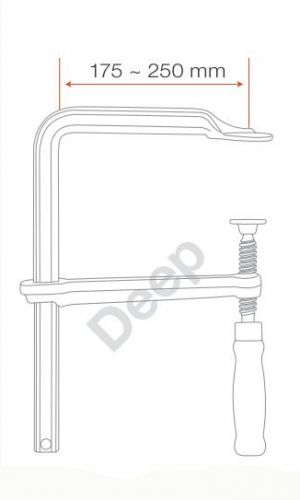

The wooden handle is made of rubber tree. The pressure of Wooden Handle Clamp is based on the span 150mm. Wooden Handle Clamp Rail : 27x13 & 30 x 15, Span 2000, 2500, 3000 and 3500mm. Special sizes of Wooden Handle Clamp can be produced according to customers' need. Extra PP pads can be ordered together with the clamp or separately, as accessories.

Product Specification

Item NO.	Span x Depth mm	Rail mm	Weight kg	Pressure kg	Pack pcs
G40C	400 X 175	27.0 X 13.0	2.57	700	10
G60C	600 X 175		3.06		6
G80C	800 X 175		3.55
G100C	1000 X 175		4.03
WD30T20	300 X 200	30.0 X 15.0	3.06	800	6
WD40T20	400 X 200		3.38
WD50T20	500 X 200		3.70
WD60T20	600 X 200		4.02
WD80T20	800 X 200		4.65		4
WD100T20	1000 X 200		5.28
WD40T25	400 X 250	30.0 X 15.0	3.61	700	6
WD50T25	500 X 250		3.92
WD60T25	600 X 250		4.24
WD80T25	800 X 250		4.87		4
WD100T25	1000 X 250		5.51
