Clamp Cantilever F

    • Clamp Cantilever F Item No. : Cantilever F Series
    Favorite Inquiry PREV
    Product Feature
    It is specifically designed for clamping inward and outward to meet various clamping applications.
    Simply changing the slide-in direction of the sliding arm can shift such clamping direction.
    The cantilever helps to obtain maximum clamping pressure with minimum tightening force.
    The clamping pressure is measured at the span of 150mm.

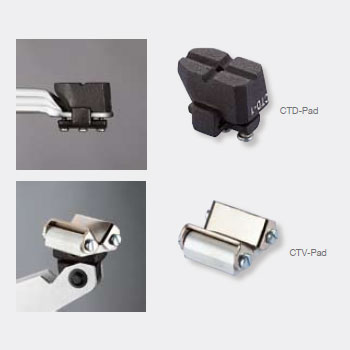

    The clamping block of CTD and CTV are optional accessories.
    Product Specification
    Item NO. Span x Depth
    mm    		 Rail
    mm    		 Weight
    kg    		 Pressure
    kg    		 Pack
    pcs
    CTL-15 150 X 80 22.0 X 10.5 1.36 600 10
    CTL-20 200 X 80 1.44
    CTL-50 500 X 80 1.93
    CTL-80 800 X 80 2.42
    CTL-30 300 X 100 27.0 X 13.0 2.72 700 6
    CTL-60 600 X 100 3.46
    CTL-100 1000 X 100 4.41
    CTL-30-14 300 X 140 27.0 X 13.0 2.90 600 6
    CTL-60-14 600 X 140 3.67
    CTL-100-14 1000 X 140 4.65
