Home > Products > Clamps > Limited Space Working > Hurdle-Free Unchangeable/ Multiple Pad

Hurdle-Free Unchangeable/ Multiple Pad

    • Hurdle-Free Unchangeable/ Multiple Pad Item No. : Unchangeable Series
    Description
    » The U-term design makes it handy in clamping H beam for welding.

    » Hurdle-Free Screw Clamp is easy to operate and applicable to all types of H beam.

    » The clamping pressure is measured at the span of 150mm.
    Favorite Inquiry NEXT
    Product Specification
    Item NO.

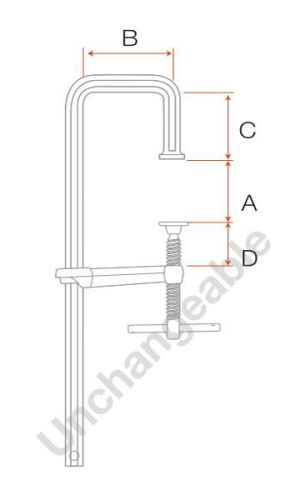

    Span x Depth
    A x B mm
    U-Turn
    C mm
    Overpass Height
    D mm
    Rail
    mm
    Weight
    kg
    Pressure
    kg
    Pack
    pcs
    H25U6S
    250 X 120
    60
    90
    22.0 X 10.5
    1.50
    550
    10
    H30U10S
    300 X 140
    100
    100
    25.0 X 12.0
    2.35
    650
    10
    H30U11S
    300 X 140
    110
    115
    30.0 X 15.0
    3.38
    1100
    6
    H50U11S
    500 X 140
    4.02
    H30U15S
    300 X 175
    150
    130
    40.0 X 20.0
    6.80
    2200
    2
    H40U15S
    400 X 175

    7.38
    H50U15S
    500 X 175
    7.94
